PRODUCT FEATURES
1.The MACRVIGOR intelligent cutting slot raise-boring machineemploys a mechanical rock-breaking method. It uses a roller cone bitfor pilot drilling, followed by a reaming cutter head that fractures therock in a single-pass raising process, and boasts the advantages ofsafety, high efficieney, low cost and good finished shaft quality.;
2.High-strength steel with a yield strength of 1,000 MPa is selectedfor structural parts, featuring lightweight and compact design, andflexible operation;
3.The hydraulic crawler chassis is self-lubricating and mainte-nance-free, with excellent ground adhesion characteristics andwet-type hydraulic braking mechanism, allowing for three-speedtransmission, in-situ turning and other functions. The machine is suit-able for long-distance climbing and high-load travel;
4.Designed with a modular structure, the machine can be disassem-bled into sections under 3 meters for rapid assembly and convenientcage transportation;
5.Alloperations support dual-mode drive between wircless/vired remote control and lever control, allowing for fre swiching and mutual backup for high Reliability.
| Item | Unit | Parameter | |
| Rotation parameters |
Rotation speed | r/min | 30(Pilot hole boring)/15(Broaching) |
| Rated torque | KN.m | >66 | |
| Feed parameters | Feed force for pilot hole boring/broaching |
KN | >1700 |
| Pul-back force | KN | >1700 | |
| Construction parameters |
Upward pilot hole diameter | mm | 280 |
| Reamed raise diameter | mm | 280-900(upward boring) | |
| 280-900(downward boring) | |||
| 1500(downward reverse broaching,optional) | |||
| Maximum raise depth | m | 100(upward boring) | |
| 200(downward boring) | |||
| 200(downward reverse broaching) | |||
| Downward pilot hole diareter | mm | 241 | |
| Downward pilot hole depth | m | 200 | |
| Deflection angle | ° | 60～90 | |
| Power pack parameters |
Rated voltage | V | 380/660 |
| Rated motor power | KW | 90 | |
| Diesel engine power | KW | 96 | |
| Emission | / | Non-rond mobile machinery China IV | |
| Tramming parameters |
Tramming in low gear | km/h | 1.4 |
| Tramming in high gear | km/h | 2.6 | |
| Gradeability | ° | ≥14 | |
| Ground clearance | mm | ≥250 | |
| Control mode | / | Wireless remote control+lever control | |
| Machine parameters |

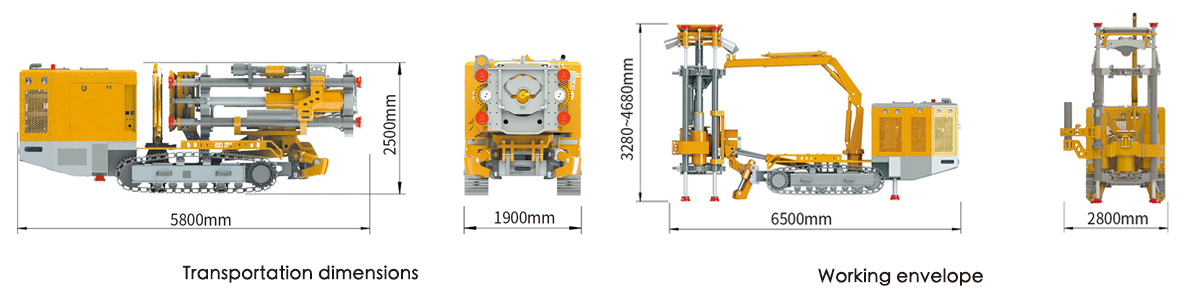

Dimensions for tramming (length×width×height) |
mm | 5800*1900*2500 |
| Working envelope (length×width ×height) |
mm | 6500*2800*3280～4680 | |
| Mass | t | 22.5 | |
