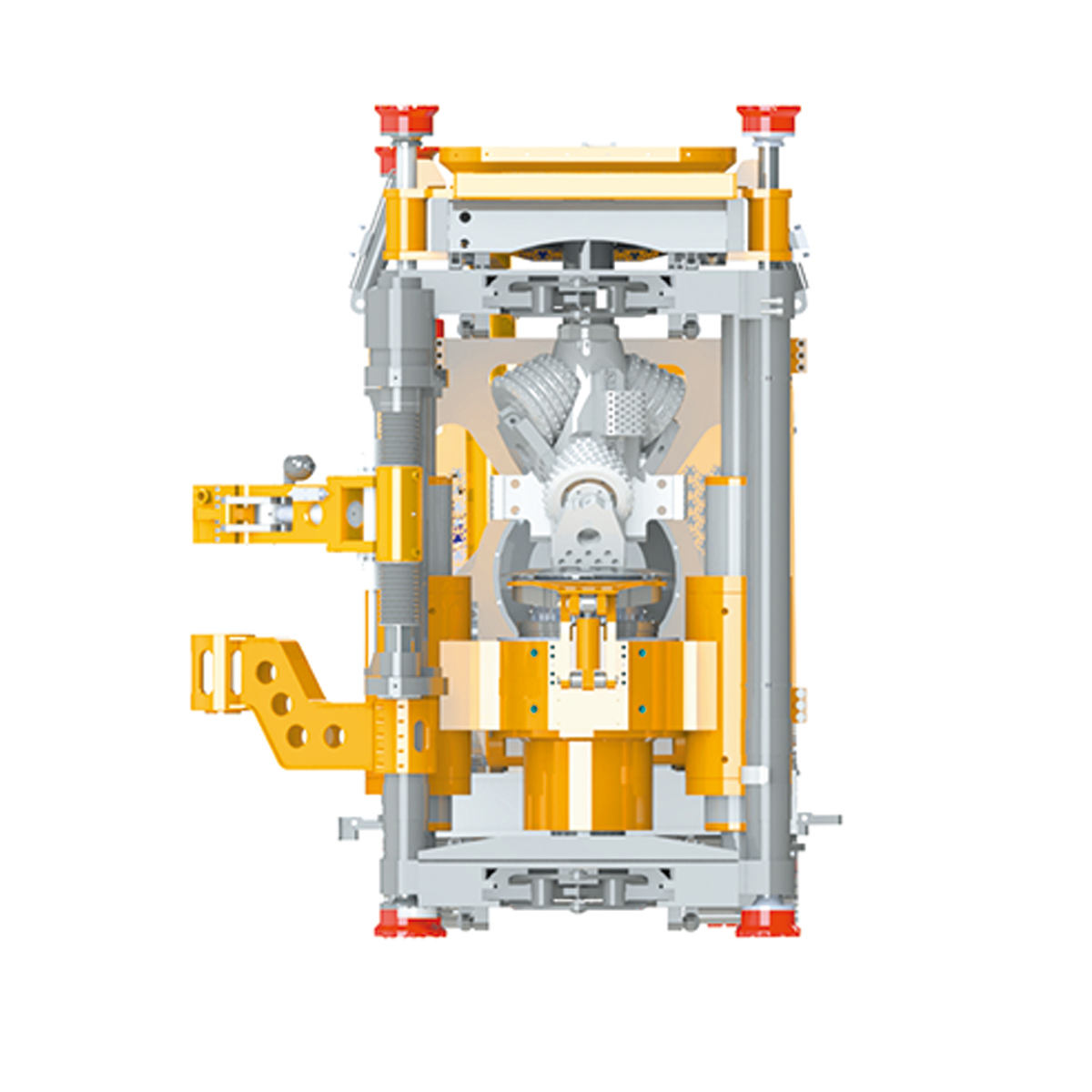

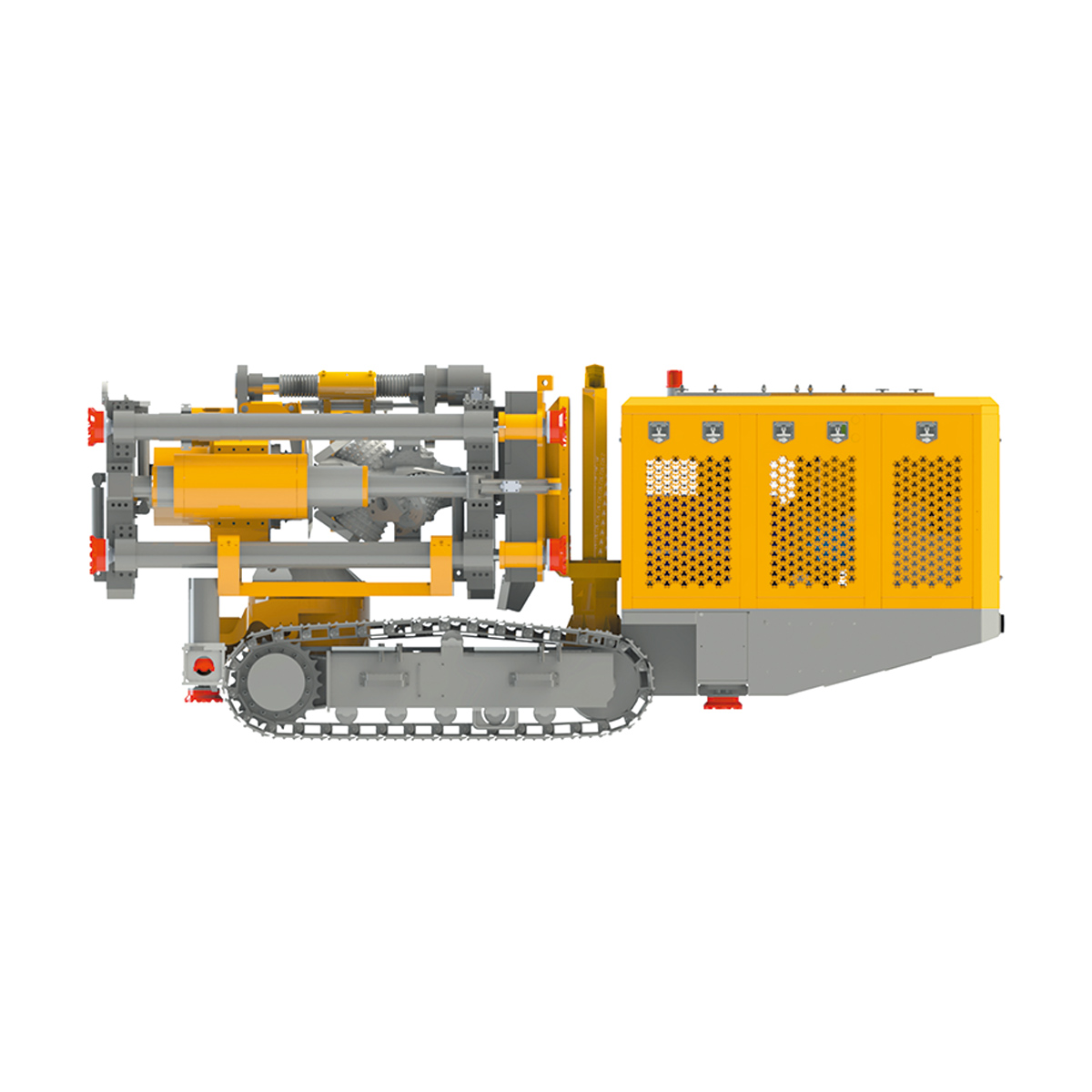

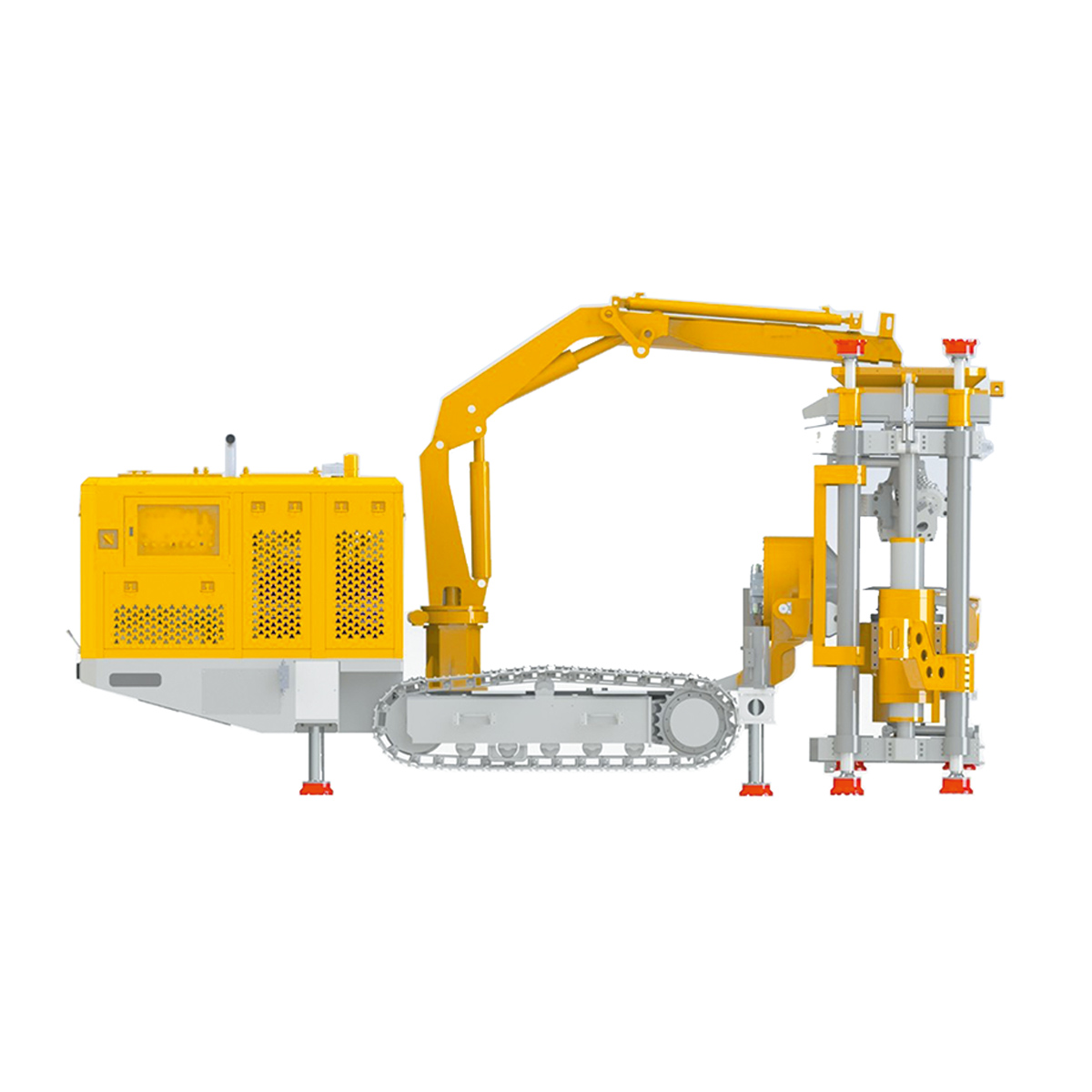

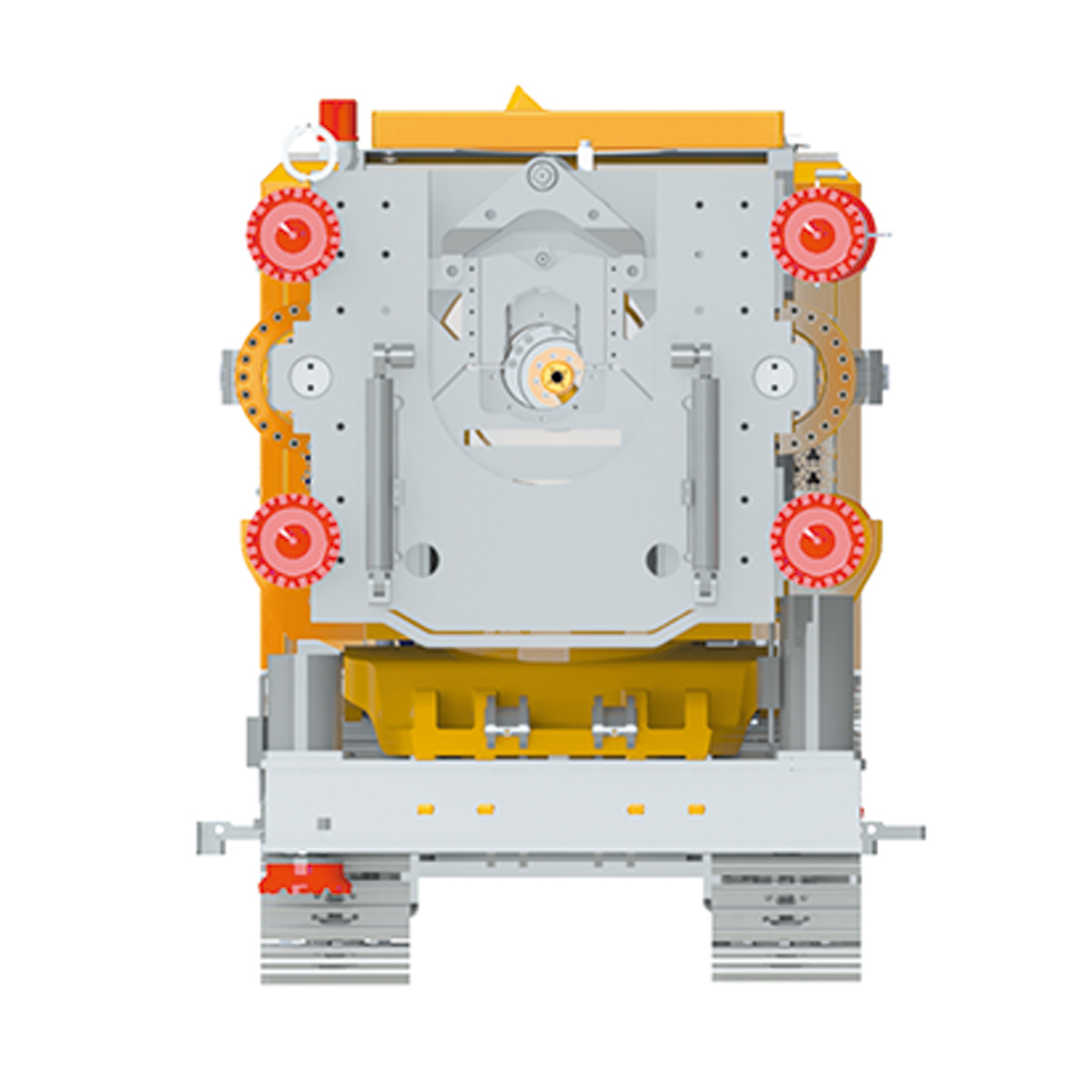

1.The MACRVIGOR intelligent cutting slot raise-boring machineemploys a mechanical rock-breaking method. It uses a roller cone bitfor pilot drilling, followed by a reaming cutter head that fractures therock in a single-pass raising process, and boasts the advantages ofsafety, high efficieney, low cost and good finished shaft quality.;
2.High-strength steel with a yield strength of 1,000 MPa is selectedfor structural parts, featuring lightweight and compact design, andflexible operation;
3.The hydraulic crawler chassis is self-lubricating and mainte-nance-free, with excellent ground adhesion characteristics andwet-type hydraulic braking mechanism, allowing for three-speedtransmission, in-situ turning and other functions. The machine is suit-able for long-distance climbing and high-load travel;
4.Designed with a modular structure, the machine can be disassem-bled into sections under 3 meters for rapid assembly and convenientcage transportation;
5.Alloperations support dual-mode drive between wircless/vired remote control and lever control, allowing for fre swiching and mutual backup for high Reliability.
| Item | Unit | Parameter | |
| Rotation parameters |
Rotation speed | r/min | 30(Pilot hole boring)/15(Broaching) |
| Rated torquc | kN.m | 53 | |
| Feedparameters | Feed fore for pilot hole boring/bronching | kN | ≥1200 |
| Pull-back foree | kN | ≥1200 | |
| Construction parameters |
Maximum Reaming diameter | mm | 280(Pilot hole boring)/520(upward boring) |
| Maximum Drilling depth | m | (Pilot hole boring)/(upward boring)≤100 | |
| Downward Reaming | mm | 1500 | |
| Reaming Depth | m | ≤100 | |
| Deflection angle | ° | 60~90 | |
| Power pack parameters |
Rated voltage | V | 380/660 |
| Rated motor power | kW | 75 | |
| Diesel engine power | kW | 53 | |
| Emission | / | Non-road mobile machinery China IV | |
| Tramming parameters |
Tramming in low gear | km/h | 1.5 |
| Tramming in high gear | km/h | 3.0 | |
| Gradeability | ° | ≥14 | |
| Ground clearance | mm | ≥200 | |
| Control mode | / | Wireless remote control+lever control | |
| Machine parameters |

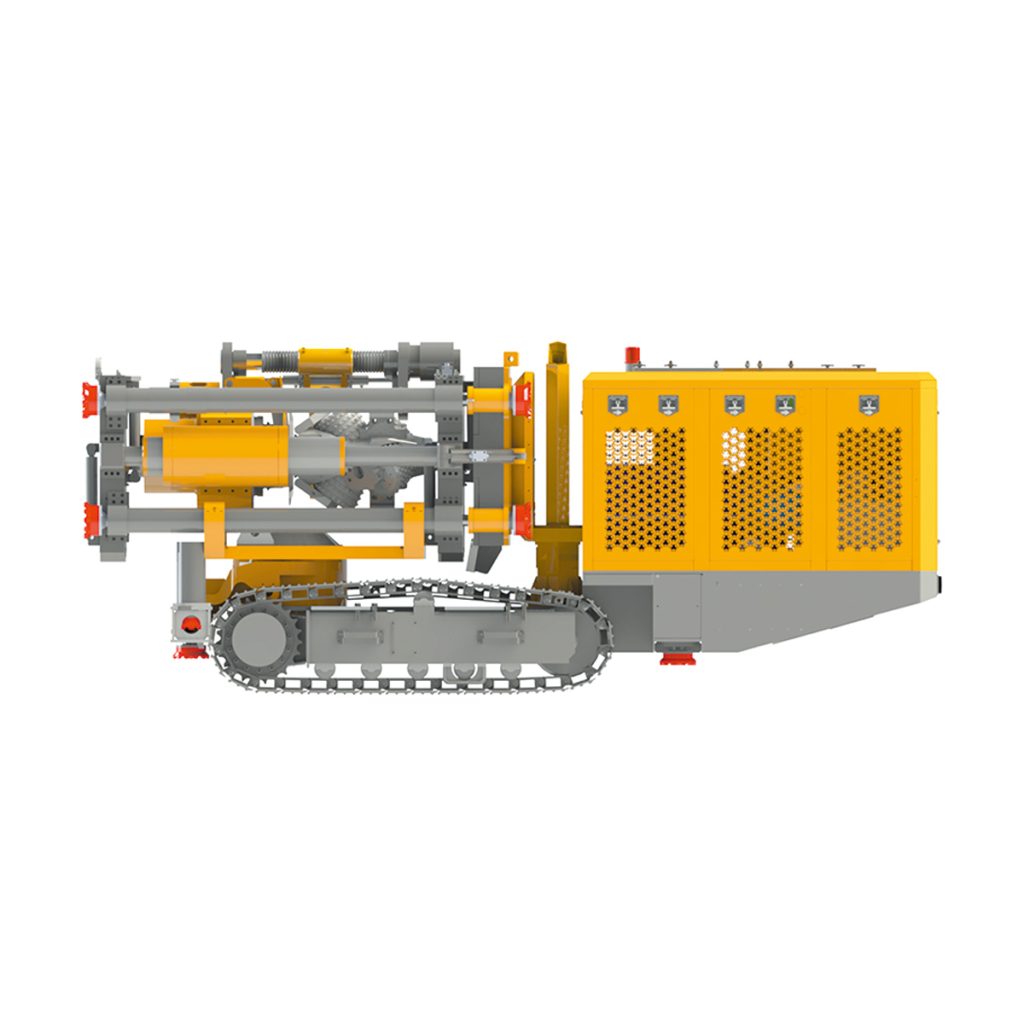

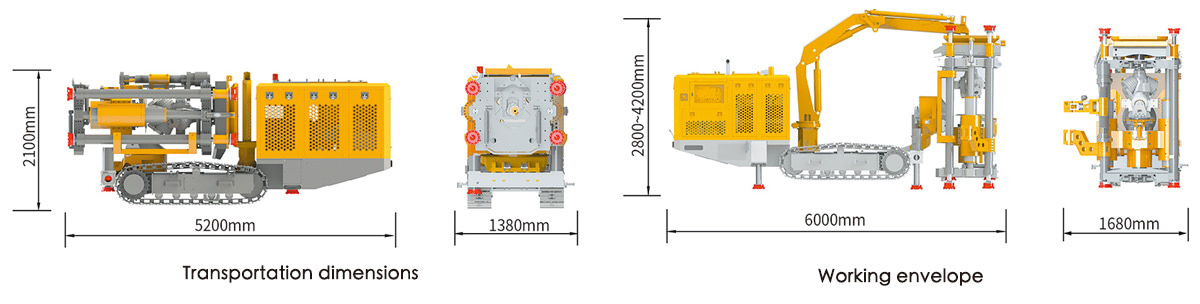

Dimensions for tramming (length×width×height) |
mm | 5200*1380*1750 |
| Working envelope (ength×width×height) |
mm | 6000*1680*2900 | |
| Mass | t | 18 | |
