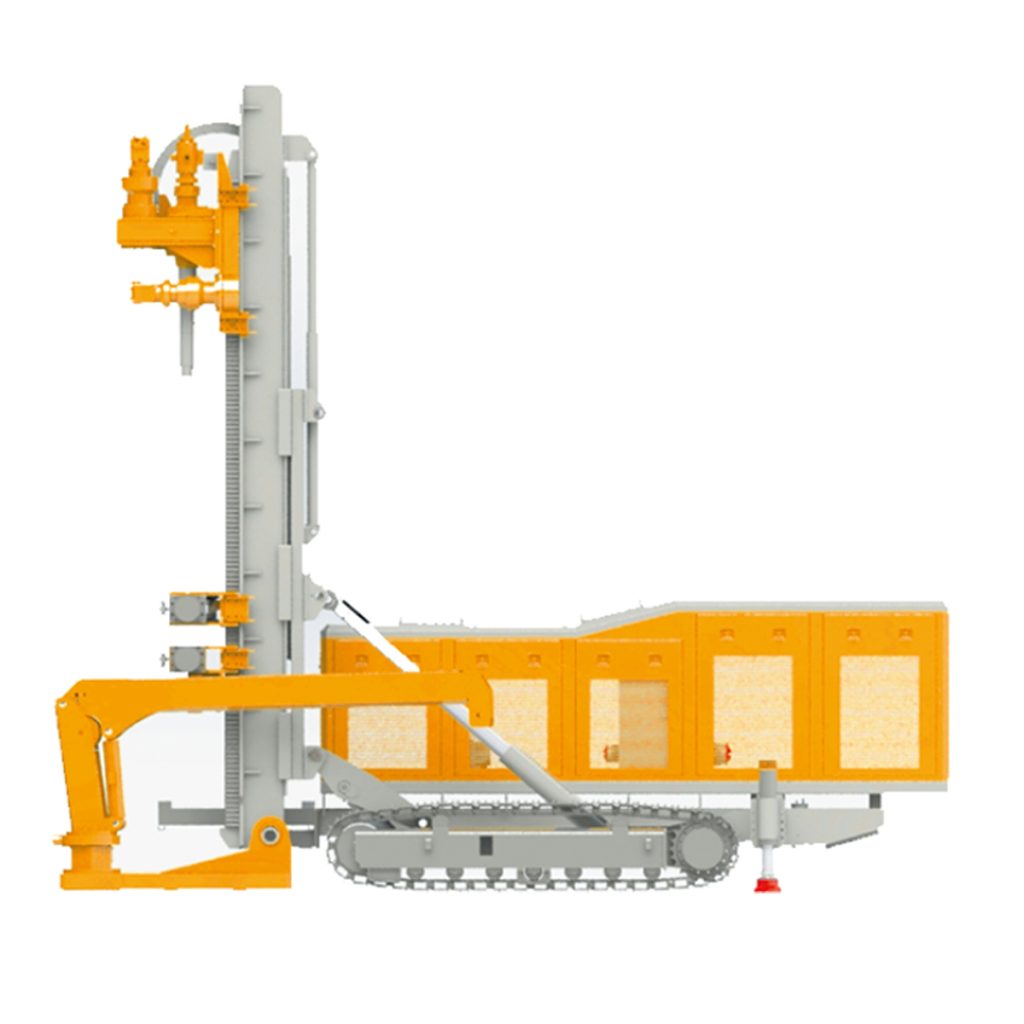

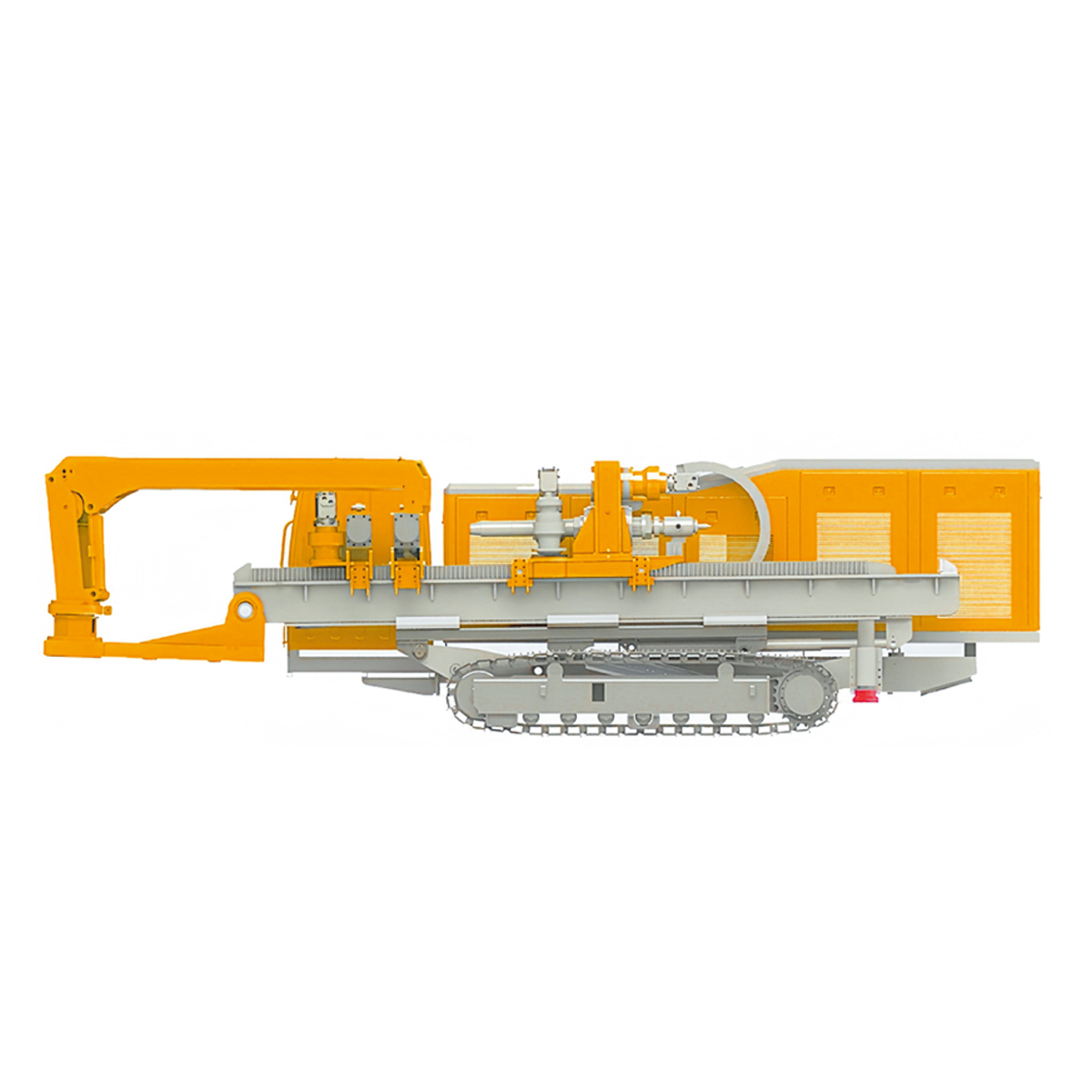

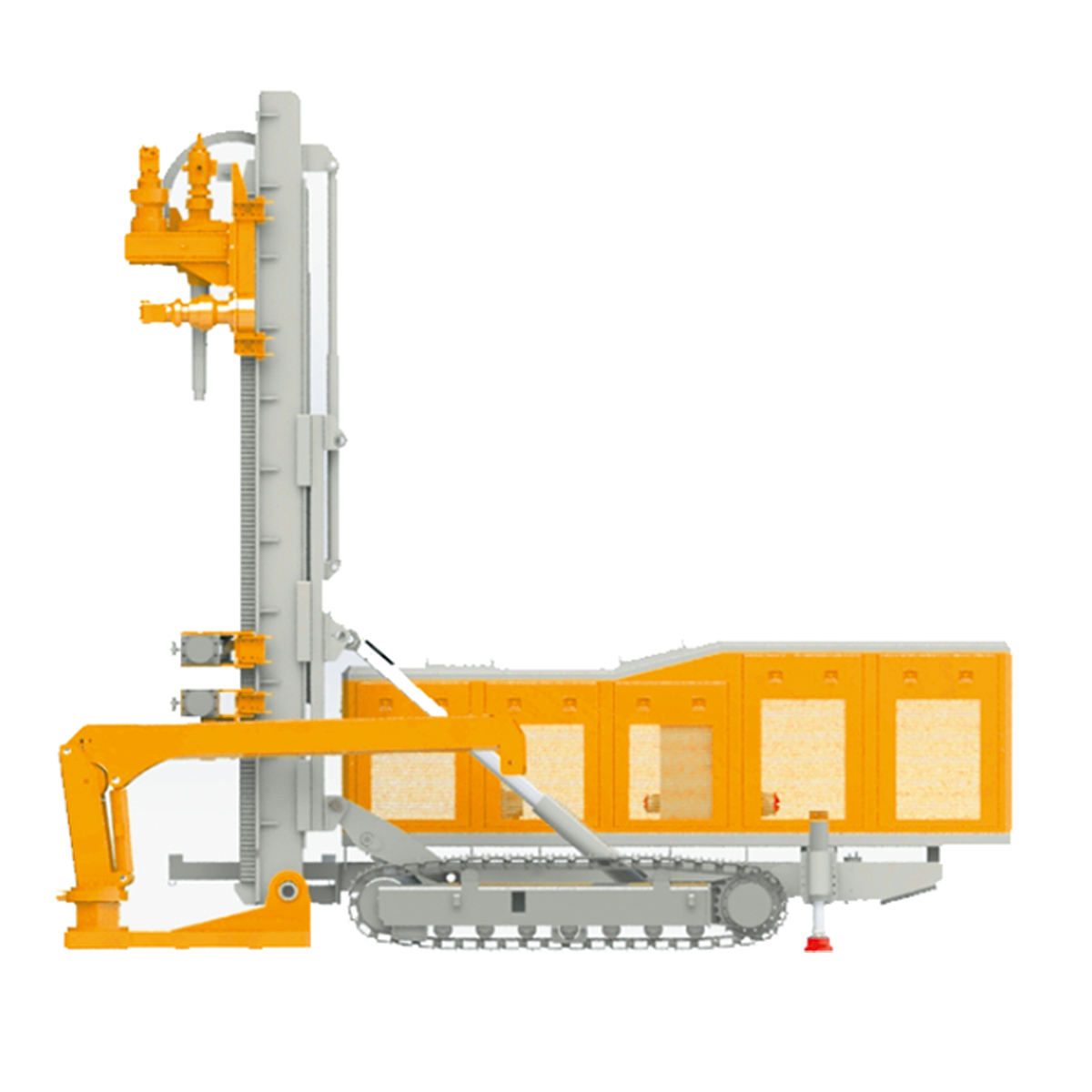

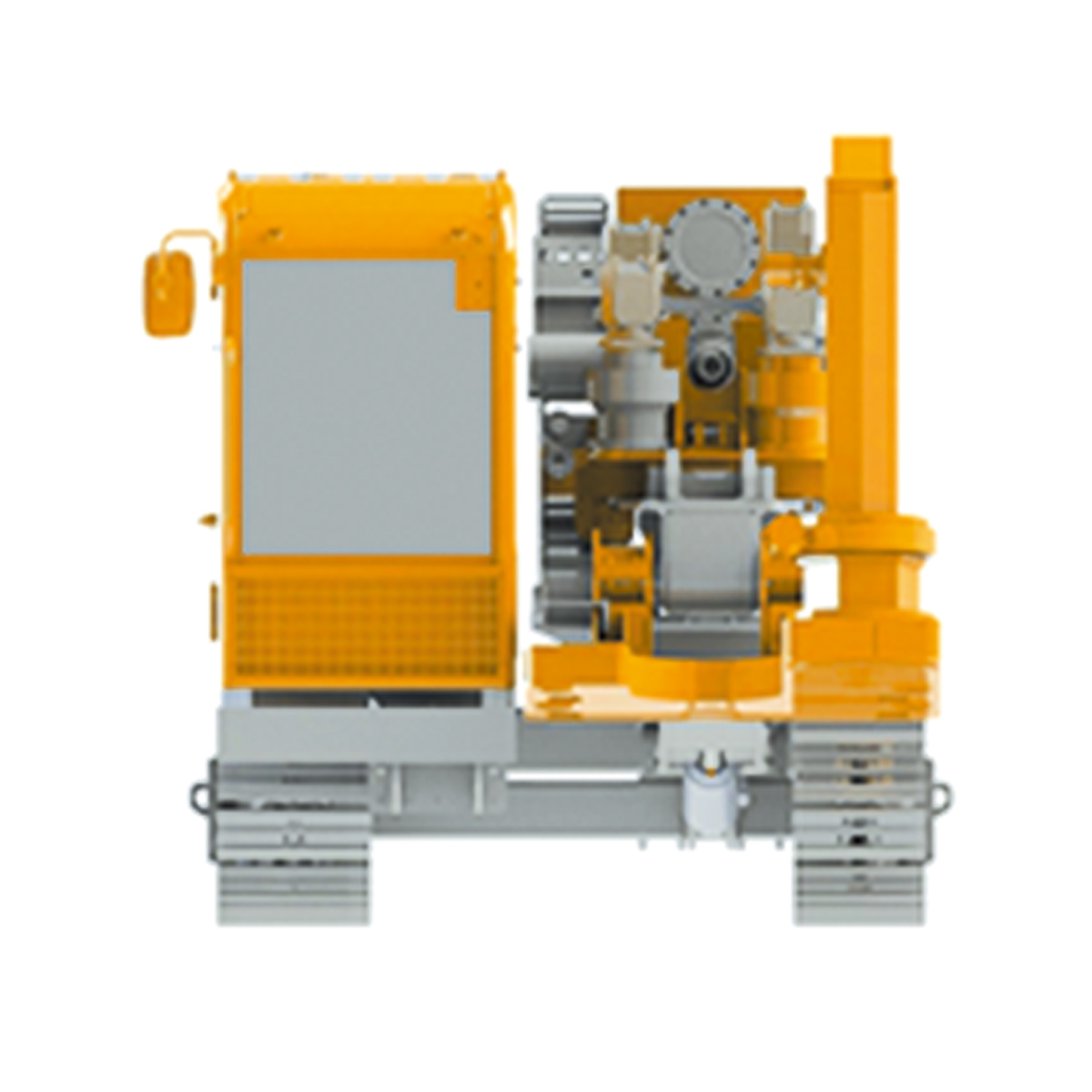

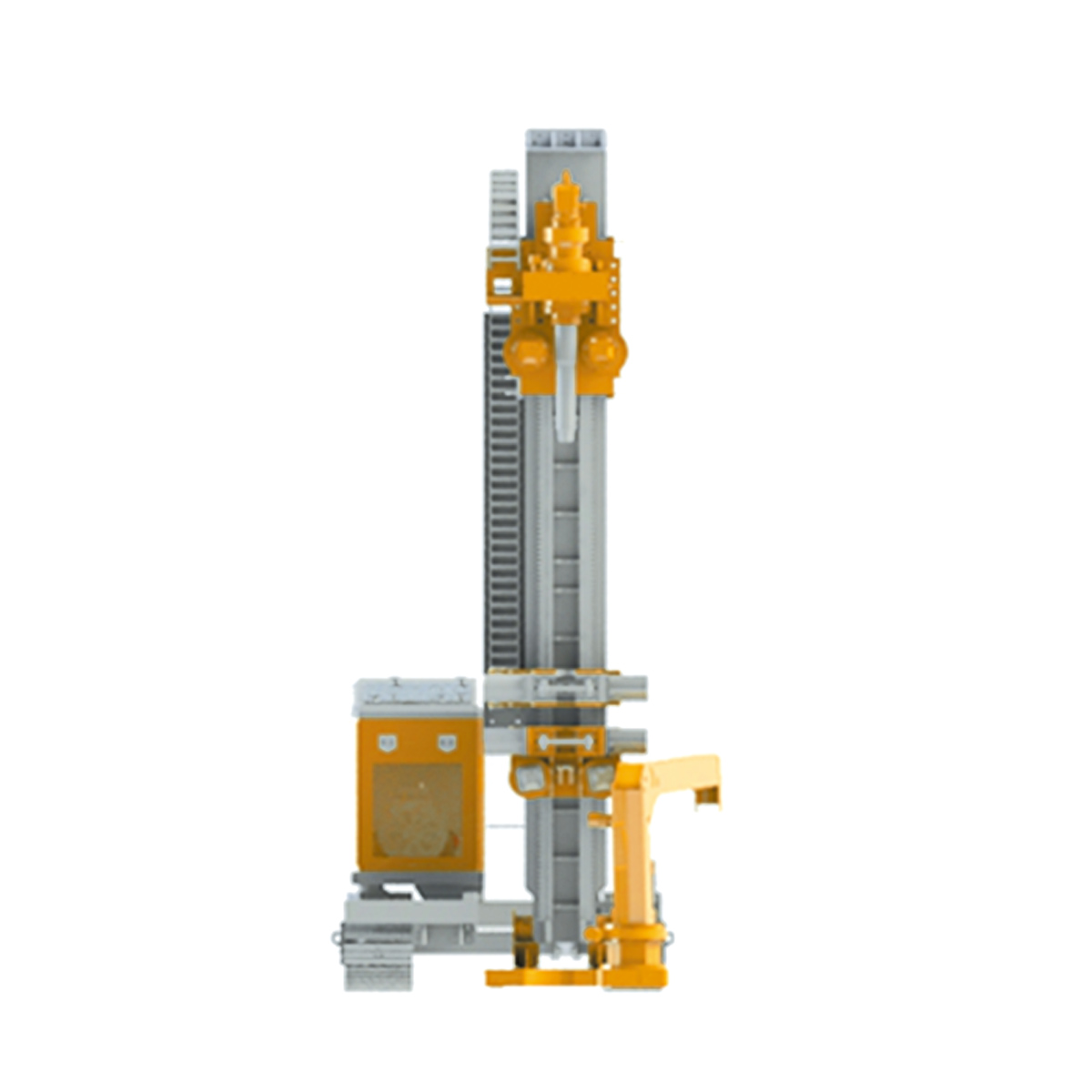

MTX-600 High-depth and High-precisionPilot Hole Drilling Rig

PRODUCT FEATURES

1. The MTX600 high-depth and high-precision pilot hole directional dniling rig employs full hydraulic drive technology., and comes witha constant power load -sensing variable system driven by a high-power permanent magnet synchronous motor, featuring compact structure,convenient installation and accurate positioning;

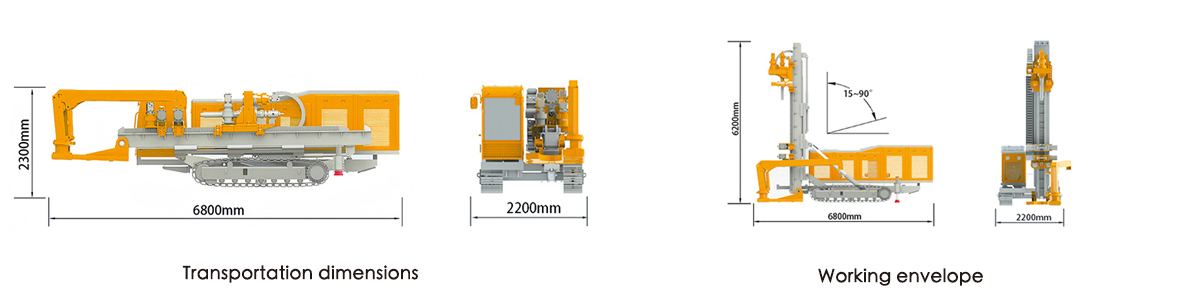

2. With the maximum downward pilot hole drilling angle of 90°, the machine boasts directional deviation correction capability during op-eration and, combined with a high-precision geological tracking instrument, achieves accuracy controlled within 2%.

3. Diesel -electic combined dual-power hydraulic system: The diesel engine handles tramming and erection and drives the truck-mountedcranes, and the clectric motor drives each actuator. The jack and truck-mounted crane can be controlled by cither the diesel engine or theelectric motor via switching;

4. The front and rear floating sliding main beams ensure operation can be performed at various angles;

5. The configurable movable operator’s cabin allows the opera-tor to maintain the optimal field of view for construction activi-ties;

6. The rig is equipped with a 2-ton truck-mounted crane, facili-tating the hoisting of drill rods, strings, and auxiliary construc-tion equipment;
